Active Directory Agents

Agents run on your network to perform on‑premises Active Directory operations (enable/disable accounts, add/remove users from groups, directory sync). They connect outbound to the GrantFlow control plane (Agents service) using mutual TLS (mTLS) over HTTPS — no inbound firewall rules are required.

Use this page to enroll agents, verify health, review capabilities, and handle maintenance.

How enrollment works

• Outbound‑only mTLS HTTPS connection from the agent to the Agents service (agents.grantflow.cloud, TCP/8443)
• Agent identity starts with a short‑lived enrollment token, which is exchanged for an mTLS certificate issued by GrantFlow
• The certificate is stored locally, protected by DPAPI (Windows) or restricted file permissions (Linux), and rotated automatically before expiry
• Each agent is scoped to your tenant and gets its capabilities assigned by the control plane (e.g., account enable/disable, group membership)

INFO

For production, run at least two agents per critical domain and place them on different hosts or availability zones for resilience.

Prerequisites

• A (domain‑joined) Windows or Linux host with outbound internet access
• Outbound connectivity from the host to GrantFlow services:
  • Agents service: agents.grantflow.cloud over HTTPS (TCP/8443)
  • Enrollment service: enrollment.grantflow.cloud over HTTPS (TCP/443)
• If the agent does not run on a domain controller: outbound connectivity to your domain controllers (LDAP port 389 or LDAPS port 636)
• A service account in AD with the minimum required permissions for your use cases
• Admin access to GrantFlow to create enrollment tokens

Agent on a Domain Controller

When the agent runs directly on a domain controller, it connects to Active Directory via localhost. The connector's LDAP host, port, and TLS settings are ignored — directory traffic never leaves the host, which improves both performance and security. Network access to other domain controllers is not required in this scenario.

Step 1 — Generate an enrollment token

1. Open Admin → Connectors → Active Directory → Agents tab

https://portal.grantflow.cloud

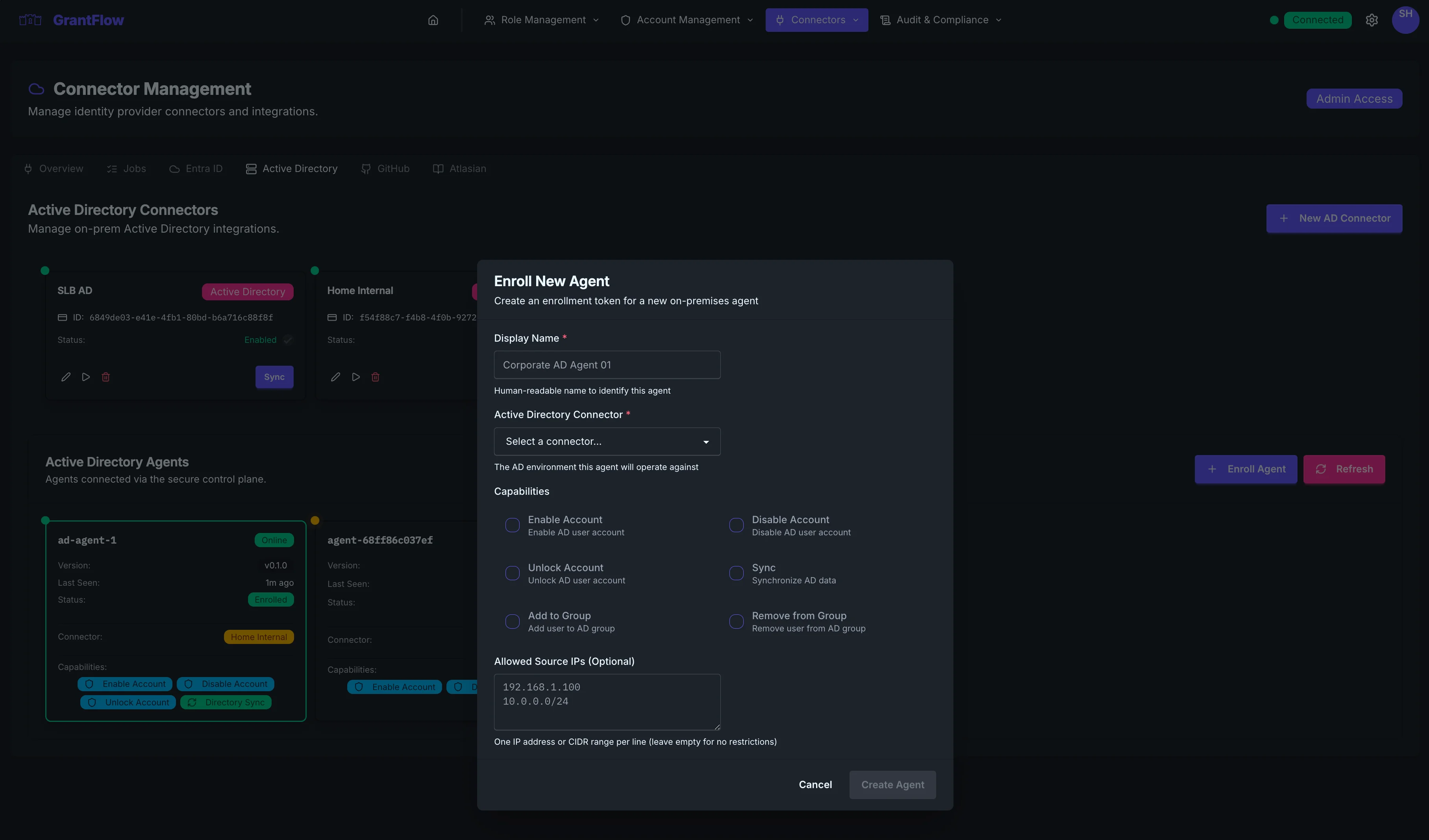

2. Select Enroll Agent

https://portal.grantflow.cloud

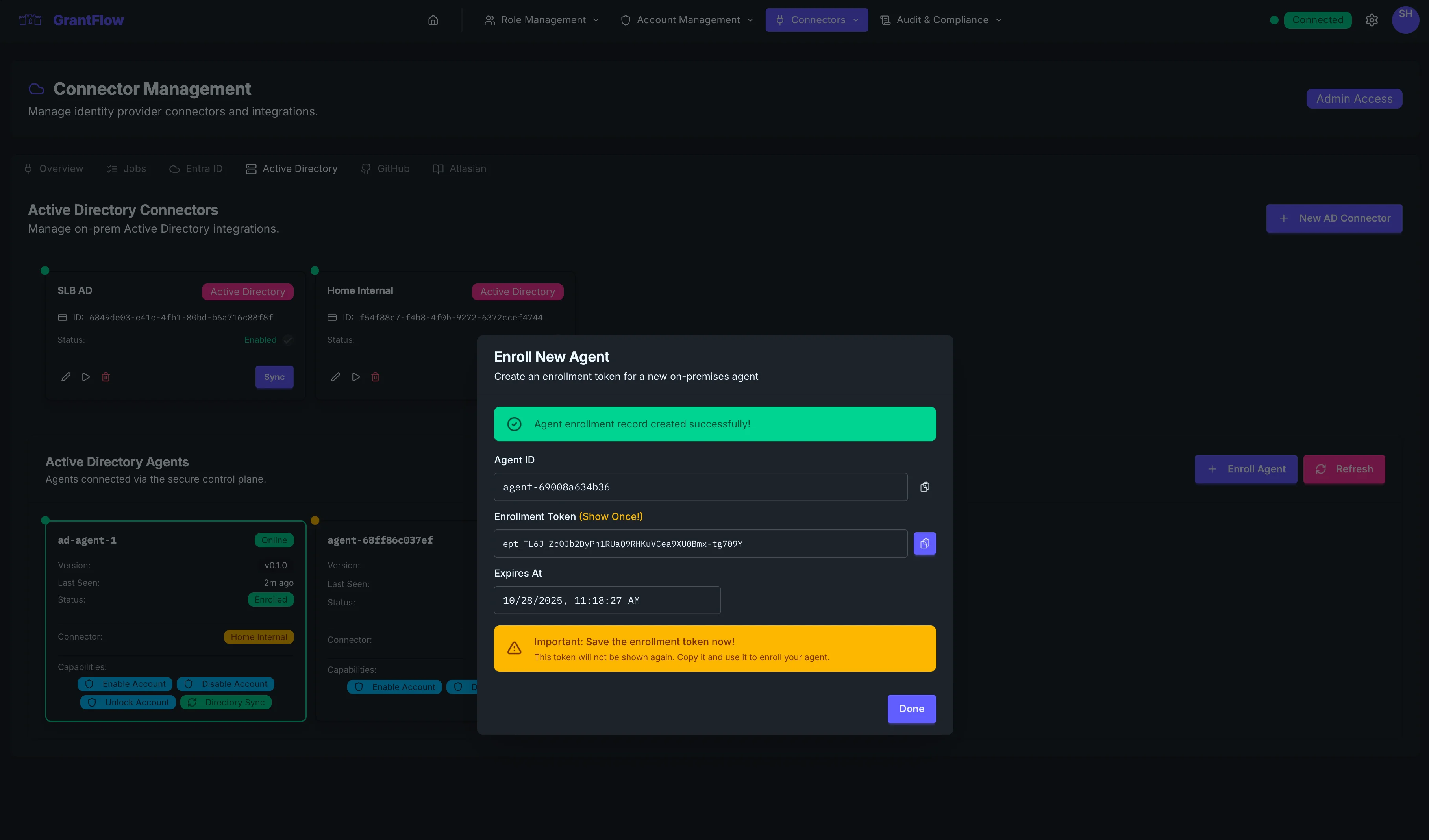

3. Copy the enrollment token (time‑limited)

https://portal.grantflow.cloud

Token lifetime

Enrollment tokens expire quickly (about 1 hour). Start installation immediately after generating the token. If it expires, create a new one.

Automate with CLI

If you need to enroll multiple agents, you can generate enrollment tokens programmatically using the GrantFlow CLI and feed them into your install scripts (per host or in batches). See the CLI reference for details: CLI Reference.

Step 2 — Install the agent

Choose the method that matches your environment. Replace placeholders with your values. Do not paste secrets into documentation or tickets.

Download the agent binary

Open Admin → Connectors → Active Directory → Agents tab and select Download Agent. The download dialog shows the current version and provides binaries for every supported platform:

Platform	Architectures
Windows	x64, ARM64
Linux	x64, ARM64

Each download includes a SHA-256 hash you can use to verify file integrity after transfer. Expand the Verify integrity section in the download dialog to see and copy the hash for your platform.

Verify the download

After copying the binary to your target host, compare the file hash against the value shown in the download dialog to confirm the file was not altered in transit.

Windows (PowerShell):

Get-FileHash .\agent.exe -Algorithm SHA256

Linux:

sha256sum ./agent

Windows (Service)

Prerequisites

• Windows Server 2016 or later
• Administrator privileges for installation
• Outbound HTTPS access to enrollment.grantflow.cloud (TCP/443) and agents.grantflow.cloud (TCP/8443)
• Network access to your domain controllers (LDAP port 389 or LDAPS port 636) — not required when the agent runs directly on a domain controller

Installation Steps

1. Download the agent binary from the download dialog above and copy it to the target Windows host (e.g., C:\Program Files\GrantFlow Agent\agent.exe)

2. Create the installation directory structure:

   # Create directory structure
   New-Item -ItemType Directory -Force -Path "C:\Program Files\GrantFlow Agent"
   New-Item -ItemType Directory -Force -Path "C:\Program Files\GrantFlow Agent\config"
   New-Item -ItemType Directory -Force -Path "C:\Program Files\GrantFlow Agent\certs"

   # Copy agent.exe to installation directory
   Copy-Item agent.exe "C:\Program Files\GrantFlow Agent\agent.exe"

3. Enroll the agent with the enrollment token from Step 1:

   cd "C:\Program Files\GrantFlow Agent"

   # Enroll the agent (replace placeholders)
   .\agent.exe enroll `
     --enrollment-url https://enrollment.grantflow.cloud/enroll `
     --tenant-id YOUR_TENANT_ID `
     --agent-id YOUR_AGENT_ID `
     --token YOUR_ENROLLMENT_TOKEN

   This creates:

   • Configuration file: config\agent-config.yaml with absolute paths
   • Certificate files: certs\agent-cert.pem, certs\agent-key.pem, certs\ca-chain.pem

4. Install the Windows service:

   cd "C:\Program Files\GrantFlow Agent"
   .\agent.exe service install

   The service is configured to:

   • Run as NT AUTHORITY\LocalService (least privilege)
   • Start automatically on system boot
   • Restart on failure
   • Write logs to C:\Windows\Temp\grantflow-agent-YYYYMMDD.log (one file per day)

5. Grant Local Service permissions to access certificates and configuration:

   # Grant read access to certs and config directories
   icacls "C:\Program Files\GrantFlow Agent\certs" /grant "NT AUTHORITY\LocalService:(OI)(CI)R" /T
   icacls "C:\Program Files\GrantFlow Agent\config" /grant "NT AUTHORITY\LocalService:(OI)(CI)R" /T

6. Start the service:

   cd "C:\Program Files\GrantFlow Agent"
   .\agent.exe service start

7. Verify the service is running:

   # Check service status
   .\agent.exe service status

   # Verify service account
   sc.exe qc GrantFlowAgent
   # Should show: SERVICE_START_NAME : NT AUTHORITY\LocalService

   # View today's log file
   Get-Content C:\Windows\Temp\grantflow-agent-$(Get-Date -Format "yyyyMMdd").log

Service Management Commands

cd "C:\Program Files\GrantFlow Agent"

# Check service status
.\agent.exe service status

# Stop the service
.\agent.exe service stop

# Start the service
.\agent.exe service start

# Restart the service
.\agent.exe service stop
.\agent.exe service start

# Uninstall the service
.\agent.exe service uninstall

# View today's log file
Get-Content C:\Windows\Temp\grantflow-agent-$(Get-Date -Format "yyyyMMdd").log

# Tail logs in real-time
Get-Content C:\Windows\Temp\grantflow-agent-$(Get-Date -Format "yyyyMMdd").log -Wait -Tail 50

Updating the Agent

When a newer version is available, agent cards and the agent detail panel display an Update available badge. To update:

1. Stop the service:

   cd "C:\Program Files\GrantFlow Agent"
   .\agent.exe service stop

2. Replace agent.exe with the new version

3. Start the service:

   .\agent.exe service start

The configuration and certificates are preserved during updates.

Fixing Configuration Files (Legacy)

If you have an old configuration file with relative paths that don't work with the Windows service:

cd "C:\Program Files\GrantFlow Agent"
.\agent.exe fix-config --config .\config\agent-config.yaml

This command:

• Converts relative paths to absolute paths
• Verifies certificate files exist
• Creates a backup before making changes
• Saves the updated configuration

Note: New enrollments automatically create configuration files with absolute paths, so this command is only needed for older installations.

Linux (systemd)

Prerequisites

• Linux distribution with systemd (RHEL/CentOS 7+, Ubuntu 16.04+, Debian 9+)
• Root or sudo access for installation
• Outbound HTTPS access to enrollment.grantflow.cloud (TCP/443) and agents.grantflow.cloud (TCP/8443)
• Network access to your domain controllers (LDAP port 389 or LDAPS port 636) — not required when the agent runs directly on a domain controller

Installation Steps

1. Download the agent binary from the download dialog above and copy it to the target Linux host:

   # Create installation directory
   sudo mkdir -p /opt/grantflow-agent/{config,certs}

   # Copy agent binary
   sudo cp agent /opt/grantflow-agent/agent
   sudo chmod +x /opt/grantflow-agent/agent

2. Enroll the agent:

   cd /opt/grantflow-agent

   # Enroll (replace placeholders)
   sudo ./agent enroll \
     --enrollment-url https://enrollment.grantflow.cloud/enroll \
     --tenant-id YOUR_TENANT_ID \
     --agent-id YOUR_AGENT_ID \
     --token YOUR_ENROLLMENT_TOKEN

3. Create a dedicated service user:

   sudo useradd --system --no-create-home --shell /bin/false grantflow-agent
   sudo chown -R grantflow-agent:grantflow-agent /opt/grantflow-agent

4. Install the systemd service:

   cd /opt/grantflow-agent
   sudo ./agent service install

5. Start the service:

   sudo ./agent service start

   # Enable on boot
   sudo systemctl enable grantflow-agent

6. Verify the service is running:

   sudo ./agent service status
   # Or use systemctl
   sudo systemctl status grantflow-agent

Service Management Commands

cd /opt/grantflow-agent

# Check service status
sudo ./agent service status

# Stop the service
sudo ./agent service stop

# Start the service
sudo ./agent service start

# Restart the service
sudo systemctl restart grantflow-agent

# Uninstall the service
sudo ./agent service uninstall

# View logs (systemd journal)
sudo journalctl -u grantflow-agent -f

Least privilege

The Windows service runs as NT AUTHORITY\LocalService and the Linux service should run as a dedicated user with minimal permissions. Avoid running as root/Administrator except during installation.

Step 3 — Verify health

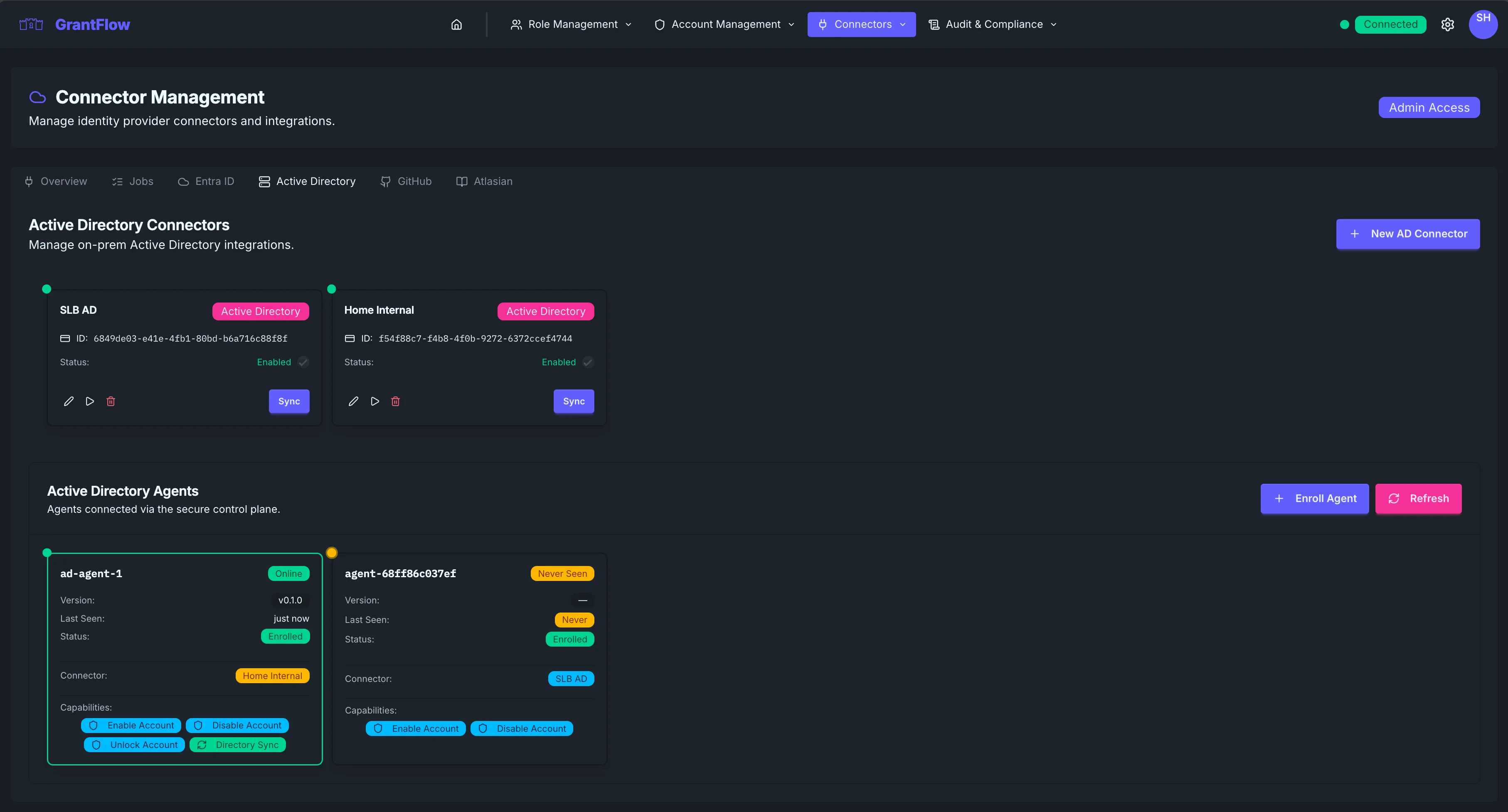

Return to Admin → Connectors → Active Directory → Agents tab. The new agent should appear within a few seconds:

• Online status with heartbeat time (“last seen”)
• Agent version and platform — an Update available badge appears when a newer release exists
• Assigned capabilities

If it doesn’t appear online within 1–2 minutes, see Troubleshooting below.

Step 4 — Assign the agent to a connector

The agent should already be assigned to the connector you selected in Step 1. If you want to assign the agent to another connector, open the agent’s properties and change the assignment.

Multiple agents

You can assign multiple agents to the same connector for high availability. The control plane dispatches jobs based on health and capacity.

Certificates and rotation

• The agent receives an mTLS certificate during enrollment and stores it securely on disk
• Certificates renew automatically well before expiry; no downtime is expected
• To force renewal, you can re‑enroll the agent with a fresh token (the old cert is rotated out)

Maintenance

• Keep at least two agents per critical domain; update them in a rolling fashion
• Monitor heartbeats and job queues; investigate sustained backlogs or repeated failures
• Log level is conservative by default; increase temporarily when diagnosing issues, then revert

Log Files and Monitoring

Windows Logs

The Windows agent writes logs to C:\Windows\Temp\grantflow-agent-YYYYMMDD.log with one file per day. All service starts, stops, and operations on the same day are written to the same log file.

View today's log:

# View entire log file
Get-Content C:\Windows\Temp\grantflow-agent-$(Get-Date -Format "yyyyMMdd").log

# Tail the log (live view)
Get-Content C:\Windows\Temp\grantflow-agent-$(Get-Date -Format "yyyyMMdd").log -Wait -Tail 50

# View logs from a specific date
Get-Content C:\Windows\Temp\grantflow-agent-20251103.log

Clean up old logs:

# Delete logs older than 30 days
Get-ChildItem C:\Windows\Temp\grantflow-agent-*.log |
  Where-Object { $_.LastWriteTime -lt (Get-Date).AddDays(-30) } |
  Remove-Item

Linux Logs

The Linux agent logs to systemd journal. Use journalctl to view logs:

# View agent logs
sudo journalctl -u grantflow-agent

# Tail logs (live view)
sudo journalctl -u grantflow-agent -f

# View logs since last boot
sudo journalctl -u grantflow-agent -b

# View logs from specific time range
sudo journalctl -u grantflow-agent --since "2025-11-03 10:00" --until "2025-11-03 12:00"

What to Look For

Successful startup:

=== GrantFlow Agent Service Started ===
Log file: C:\Windows\Temp\grantflow-agent-20251103.log
Agent ID: agent-001
Tenant ID: YOUR_TENANT_ID
Control Plane: https://agents.grantflow.cloud:8443
Certificate: C:\Program Files\GrantFlow Agent\certs\agent-cert.pem
All certificate files verified, starting agent...
Successfully connected to control plane
Agent registered and ready to receive jobs

Common issues:

• FATAL: Certificate file not found - Certificate paths are incorrect or files missing
• FATAL: Failed to connect to control plane - Network connectivity issues
• Connection refused - Control plane not reachable or firewall blocking
• TLS handshake failed - Certificate issues or clock skew

Troubleshooting

Agent shows Offline

Service not running:

# Windows
cd "C:\Program Files\GrantFlow Agent"
.\agent.exe service status
.\agent.exe service start

# Linux
sudo systemctl status grantflow-agent
sudo systemctl start grantflow-agent

Network connectivity:

• Verify outbound HTTPS (TCP/8443) to agents.grantflow.cloud and HTTPS (TCP/443) to enrollment.grantflow.cloud
• Test with: curl -v https://agents.grantflow.cloud:8443 (should return HTTP response)
• Check LDAP/LDAPS connectivity to domain controllers (port 389/636)
• Ensure no proxies interfere with the connection to GrantFlow services

Clock skew:

• Ensure NTP is working; large clock skew breaks TLS
• Windows: w32tm /query /status
• Linux: timedatectl status

Proxy/SSL inspection:

• Bypass or allowlist the Agents service endpoint
• Configure proxy settings if required (environment variables or system settings)

Enrollment failed

Token expired:

• Enrollment tokens expire after 1 hour
• Generate a new token from Admin → Connectors → Active Directory → Agents → Enroll Agent
• Complete enrollment immediately after generating the token

TLS errors:

• Check host time and ensure NTP is synchronized
• Verify trust store includes necessary root certificates
• Check local firewall rules allow outbound HTTPS to enrollment.grantflow.cloud

Permission denied:

• Ensure your GrantFlow user has Admin role
• Verify the enrollment token is correct (copy/paste carefully)

Certificate file errors:

Check the log file for details:

# Windows - view today's log
Get-Content C:\Windows\Temp\grantflow-agent-$(Get-Date -Format "yyyyMMdd").log

Common issues:

• Certificate file not found - Check that enrollment created the files in certs\ directory
• Permission denied - Local Service account needs read access (see installation steps)
• Invalid certificate - Certificate may be corrupted or enrollment failed

Service won't start on Windows

Verify service account permissions:

# Grant Local Service read access to required directories
icacls "C:\Program Files\GrantFlow Agent\certs" /grant "NT AUTHORITY\LocalService:(OI)(CI)R" /T
icacls "C:\Program Files\GrantFlow Agent\config" /grant "NT AUTHORITY\LocalService:(OI)(CI)R" /T

Verify service configuration:

# Check service account
sc.exe qc GrantFlowAgent
# Should show: SERVICE_START_NAME : NT AUTHORITY\LocalService

# If it shows LocalSystem, reinstall the service
.\agent.exe service uninstall
.\agent.exe service install

Check for path issues:

If you have an old configuration file with relative paths:

cd "C:\Program Files\GrantFlow Agent"
.\agent.exe fix-config --config .\config\agent-config.yaml

Jobs failing

AD credentials:

• Ensure the connector's bind account credentials are correct
• Verify the service account has required AD permissions
• Test LDAP bind: ldp.exe (Windows) or ldapsearch (Linux)

LDAPS certificate issues:

• Verify DC certificate is trusted when LDAPS (port 636) is enabled
• Check certificate chain and expiration
• Test LDAPS connectivity: openssl s_client -connect dc.example.com:636

Connector scope:

• Confirm the Base DN and filters include the target objects
• Check that the agent is assigned to the correct connector
• Verify organizational unit (OU) structure matches configuration

Job queue backlog:

• Check Agent tab in GrantFlow for job queue depth
• Multiple failed jobs may indicate configuration or permission issues
• Review job history and error messages in the connector logs

Re-enrolling an Agent

If certificate issues persist or you need to reset the agent:

1. Stop and uninstall the service:

   # Windows
   cd "C:\Program Files\GrantFlow Agent"
   .\agent.exe service stop
   .\agent.exe service uninstall

   # Linux
   sudo /opt/grantflow-agent/agent service stop
   sudo /opt/grantflow-agent/agent service uninstall

2. Delete old certificates and configuration:

   # Windows
   Remove-Item "C:\Program Files\GrantFlow Agent\certs\*" -Force
   Remove-Item "C:\Program Files\GrantFlow Agent\config\agent-config.yaml" -Force

   # Linux
   sudo rm -f /opt/grantflow-agent/certs/*
   sudo rm -f /opt/grantflow-agent/config/agent-config.yaml

3. Generate a new enrollment token from GrantFlow Admin UI

4. Re-enroll the agent following the installation steps above

5. Reinstall and start the service

The agent will receive a new certificate and configuration.

See also

• Connector Management
• Creating an AD Connector
• Connector Jobs
• Instant Replication Between Sites
